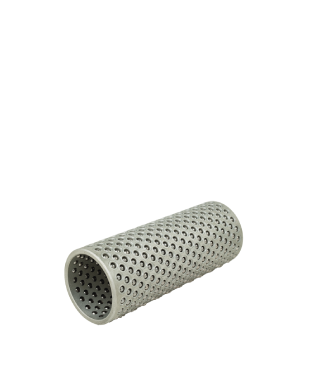

Ball Cages (Aluminum and Brass)
| BALL CAGE | BALL | |
|---|---|---|
| Brass / Aluminum | Hardened Steel DIN 5401 | 671 Brass |
| 672 Aluminum |

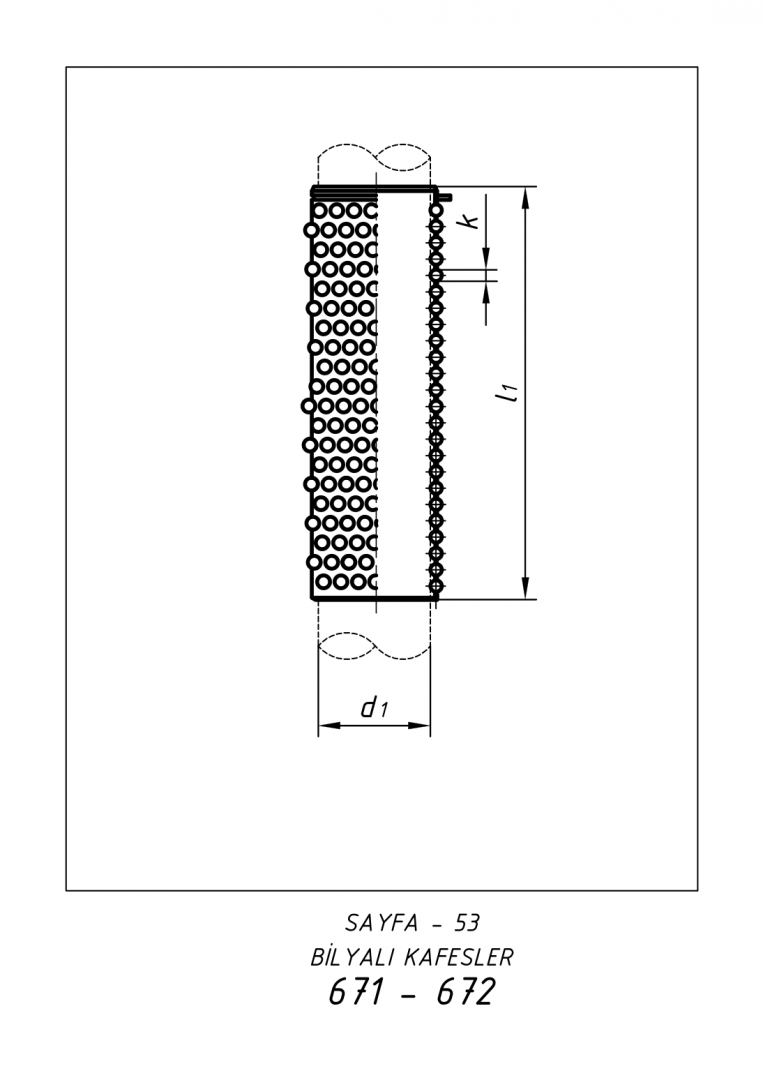

| d1 | l1 | k | Order Code |
|---|---|---|---|
| 12 | 40 | 2,5 | 671.12.040 |
| 15 | 50 | 3 | 671.15.050 |
| 15 | 60 | 3 | 671.15.060 |
| 15 | 70 | 3 | 671.15.070 |
| 16 | 50 | 3 | 671.16.050 |
| 16 | 60 | 3 | 671.16.060 |
| 16 | 70 | 3 | 671.16.070 |
| 18 | 55 | 3 | 671.18.055 |
| 18 | 70 | 3 | 671.18.070 |
| 18 | 80 | 3 | 671.18.080 |
| 18 | 90 | 3 | 671.18.090 |
| 19 | 55 | 3 | 671.19.055 |
| 19 | 70 | 3 | 671.19.070 |
| 19 | 80 | 3 | 671.19.080 |
| 19 | 90 | 3 | 671.19.090 |
| 20 | 55 | 3 | 671.20.055 |
| 20 | 70 | 3 | 671.20.070 |
| 20 | 80 | 3 | 671.20.080 |
| 20 | 90 | 3 | 671.20.090 |
| 24 | 55 | 3 | 671.24.055 |
| 24 | 65 | 3 | 671.24.065 |
| 24 | 80 | 3 | 671.24.080 |
| 24 | 90 | 3 | 671.24.090 |
| 24 | 100 | 3 | 671.24.100 |
| 24 | 120 | 3 | 671.24.120 |
| 25 | 50 | 3 | 671.25.050 |
| 25 | 65 | 3 | 671.25.065 |
| 25 | 80 | 3 | 671.25.080 |
| 25 | 90 | 3 | 671.25.090 |
| 25 | 100 | 3 | 671.25.100 |
| 25 | 120 | 3 | 671.25.120 |
| d1 | l1 | k | Order Code |
|---|---|---|---|
| 30 | 55 | 4 | 671.30.055 |
| 30 | 70 | 4 | 671.30.070 |
| 30 | 85 | 4 | 671.30.085 |
| 30 | 105 | 4 | 671.30.105 |
| 30 | 120 | 4 | 671.30.120 |
| 30 | 140 | 4 | 671.30.140 |
| 30 | 160 | 4 | 671.30.160 |
| 32 | 55 | 4 | 671.32.055 |
| 32 | 70 | 4 | 671.32.070 |
| 32 | 85 | 4 | 671.32.085 |
| 32 | 105 | 4 | 671.32.105 |
| 32 | 120 | 4 | 671.32.120 |
| 32 | 140 | 4 | 671.32.140 |
| 32 | 160 | 4 | 671.32.160 |
| 38 | 55 | 4 | 671.38.055 |
| 38 | 75 | 4 | 671.38.075 |
| 38 | 95 | 4 | 671.38.095 |
| 38 | 115 | 4 | 671.38.115 |
| 38 | 120 | 4 | 671.38.120 |
| 38 | 140 | 4 | 671.38.140 |
| 38 | 160 | 4 | 671.38.160 |
| 38 | 200 | 4 | 671.38.200 |
| 38 | 240 | 4 | 671.38.240 |
| 40 | 55 | 4 | 671.40.055 |
| 40 | 75 | 4 | 671.40.075 |
| 40 | 95 | 4 | 671.40.095 |
| 40 | 115 | 4 | 671.40.115 |
| 40 | 120 | 4 | 671.40.120 |
| 40 | 140 | 4 | 671.40.140 |
| 40 | 160 | 4 | 671.40.160 |
| 40 | 200 | 4 | 671.40.200 |
| 40 | 240 | 4 | 671.40.240 |
| d1 | l1 | k | Order Code |
|---|---|---|---|
| 48 | 60 | 4 | 671.48.060 |
| 48 | 80 | 4 | 671.48.080 |
| 48 | 100 | 4 | 671.48.100 |
| 48 | 120 | 4 | 671.48.120 |
| 48 | 140 | 4 | 671.48.140 |
| 48 | 160 | 4 | 671.48.160 |
| 48 | 180 | 4 | 671.48.180 |
| 48 | 200 | 4 | 671.48.200 |
| 48 | 240 | 4 | 671.48.240 |
| 50 | 60 | 4 | 671.50.060 |
| 50 | 80 | 4 | 671.50.080 |
| 50 | 100 | 4 | 671.50.100 |
| 50 | 120 | 4 | 671.50.120 |
| 50 | 140 | 4 | 671.50.140 |
| 50 | 160 | 4 | 671.50.160 |
| 50 | 180 | 4 | 671.50.180 |
| 50 | 200 | 4 | 671.50.200 |
| 50 | 240 | 4 | 671.50.240 |
| 60 | 95 | 4 | 671.60.095 |
| 60 | 105 | 4 | 671.60.105 |
| 60 | 120 | 4 | 671.60.120 |
| 60 | 140 | 4 | 671.60.140 |
| 60 | 160 | 4 | 671.60.160 |
| 60 | 200 | 4 | 671.60.200 |
| 60 | 240 | 4 | 671.60.240 |
| 63 | 95 | 4 | 671.63.095 |
| 63 | 105 | 4 | 671.63.105 |
| 63 | 120 | 4 | 671.63.120 |
| 63 | 140 | 4 | 671.63.140 |
| 63 | 200 | 4 | 671.63.200 |
| 63 | 240 | 4 | 671.63.240 |
| 80 | 120 | 6 | 671.80.120 |
| 80 | 140 | 6 | 671.80.140 |
| 80 | 160 | 6 | 671.80.160 |
| 80 | 200 | 6 | 671.80.200 |
| 80 | 240 | 6 | 671.80.240 |
Technical Spesifications
The accuracy and preservation of the centering precision between the punch and matrix in the molds depend on the quality and wear resistance of the guide pillars / bushing groups. Depending on the developments in the manufacturing industry, Kalıpyansan guide elements offer a long working life with new technology production methods that are constantly updated.
