Dowel Pins with Extracting Thread

Product Image

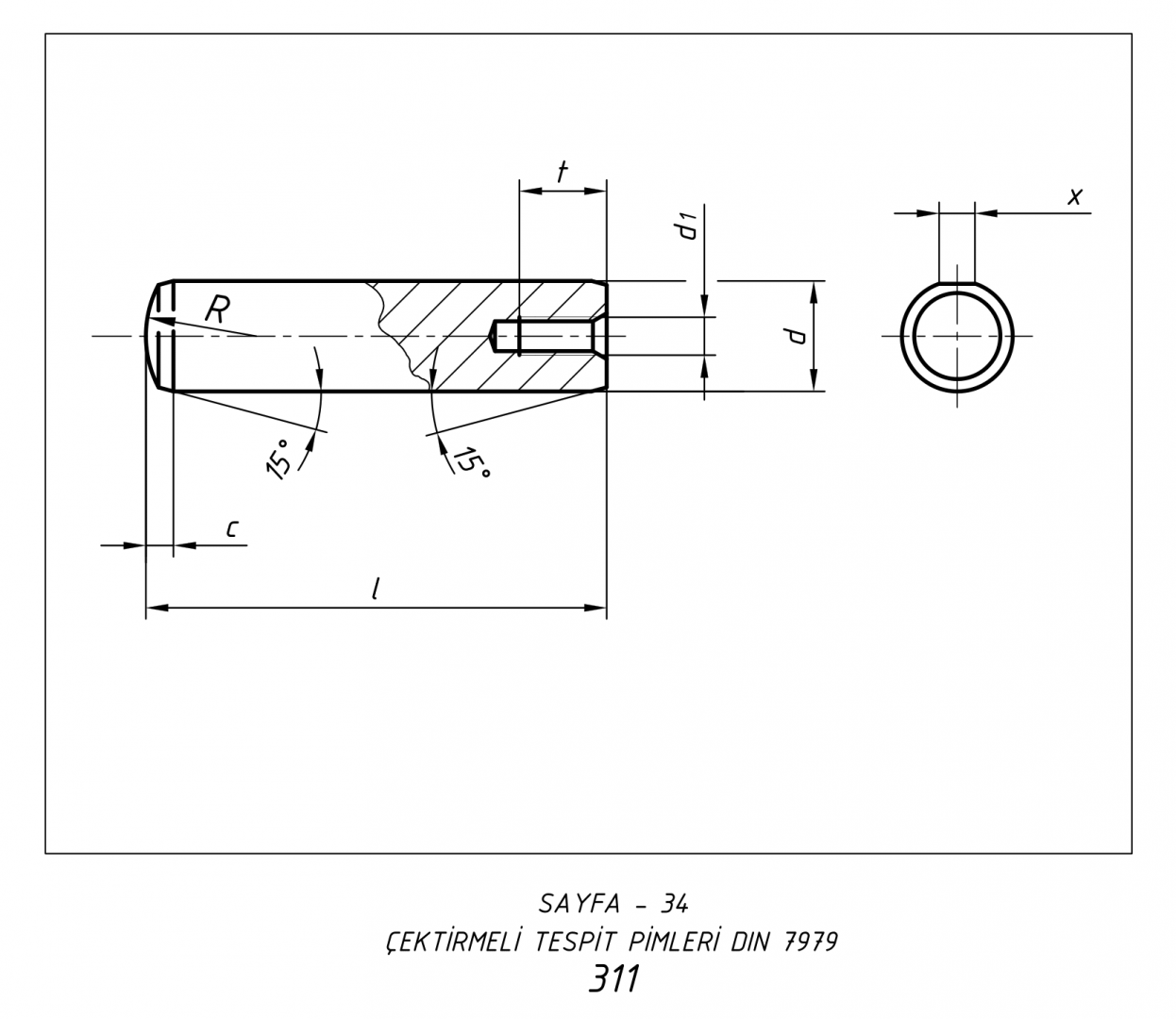

Technical Image

MATERIAL	BODY HARDNESS	MATERIAL CODE
1.2210 Tool Steeli	60 ± 2 HRC	WS

d m6	d1	R	t	c	l
d m6	d1	R	t	c	20	24	28	32	36	40	50	60	80	100	120
6	M4	6,0	6,0	1,5	●	●	●	●	●	●	●	●
8	M5	8,0	8,0	2,0	●	●	●	●	●	●	●	●	●
10	M6	10,0	10,0	2,5	●	●	●	●	●	●	●	●	●	●
12	M6	12,0	10,0	3,0				●	●	●	●	●	●	●	●
14	M8	16,0	12,0	3,5						●	●	●	●	●
16	M8	16,0	12,0	4,0						●	●	●	●	●
20	M10	20,0	16,0	5,0						●	●	●	●	●	●

ORDER EXAMPLE		ORDER EXAMPLE
Dowel Pin Code	311.	Dowel Pin Code	312.
Diameter(d m6=6,0)	0600.	Diameter(d h6=10,0)	1000.
Length(l=50)	050.	Length(l=80)	080.
Material Code	WS	Material Code	WS
Order Code	311.0600.050.WS	Order Code	312.1000.080.WS
