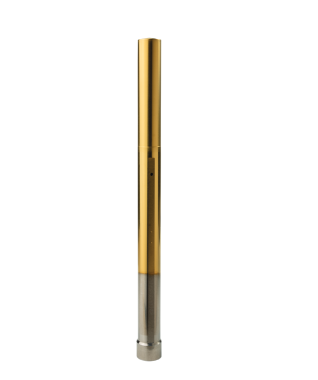

Ejector Sleeves
| MATERIAL | BODY HARDNESS | HEAD HARDNESS | MATERIAL CODE |
|---|---|---|---|
| 1.2210 Tool Stee | 60 ± 2 HRC | 35 ± 3 HRC | WS |
| 1.2344 Hot Work Steel | 45 ± 3 HRC | 35 ± 3 HRC | NWS |

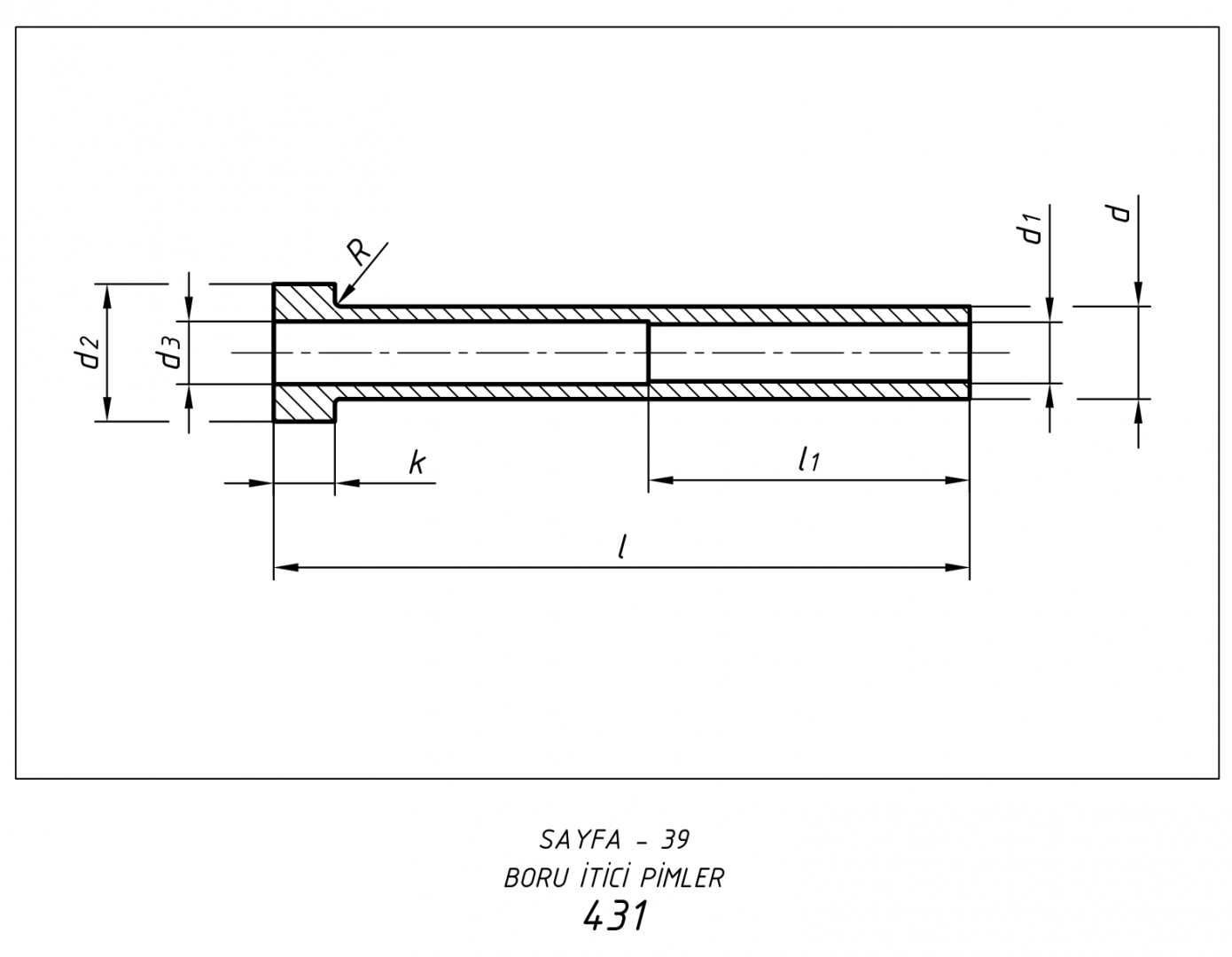

| dg6 | d1H5 | d2 | d3 | R | k | l1 | l | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 75 | 100 | 125 | 150 | 175 | 200 | 250 | 275 | 300 | 325 | 350 | |||||||
| 3 | 1,5 - 1,8 | 6 | 1,9 - 2,2 | 0,3 | 3 | 30 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 4 | 2,0 - 2,2 | 8 | 2,4 - 2,6 | 0,3 | 3 | 30 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 5 | 2,5 - 2,7 | 10 | 2,9 - 3,1 | 0,3 | 3 | 30 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 5 | 3,0 - 3,2 | 10 | 3,4 - 3,6 | 0,3 | 3 | 30 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 6 | 3,5 - 3,7 | 12 | 3,9 - 4,1 | 0,3 | 5 | 35 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 6 | 4,0 - 4,2 | 12 | 4,4 - 4,6 | 0,3 | 5 | 35 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 8 | 4,5 - 4,7 | 14 | 4,9 - 5,1 | 0,3 | 5 | 35 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 8 | 5,0 - 5,2 | 16 | 5,4 - 5,6 | 0,3 | 5 | 35 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 10 | 5,5 - 5,7 | 16 | 5,9 - 6,1 | 0,5 | 5 | 35 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 10 | 6,0 - 6,2 | 16 | 6,4 - 6,6 | 0,5 | 5 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 10 | 6,5 - 6,7 | 16 | 6,9 - 7,1 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 12 | 8,0 - 8,2 | 20 | 8,4 - 8,6 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 12 | 8,5 - 8,7 | 20 | 8,9 - 9,1 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 14 | 10,0 - 10,2 | 22 | 10,4 - 10,6 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 16 | 12,0 - 12,5 | 24 | 12,4 - 12,9 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 18 | 14,0 - 14,5 | 26 | 14,4 - 14,9 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| 20 | 16,0 - 16,5 | 26 | 16,4 - 16,9 | 0,5 | 7 | 45 | ● | ● | ● | ● | ● | ● | ● | ● | ● | ● | |
| ORDER EXAMPLE | ORDER EXAMPLE | ||
|---|---|---|---|
| Ejector Sleeve Code | 431. | Ejector Sleeve Code | 431. |
| Diameter(d=6,0) | 0600. | Diameter(d=8,0) | 0800. |
| Length(l=160) | 160. | Length(l=175) | 175. |
| Diameter(d1=4,0) | 0400. | Diameter(d1=5,0) | 0500. |
| Length(l1=35) | 35. | Length(l1=35) | 35. |
| Material Code | WS | Material Code | NWS |
| Order Code | 431.0600.160.0400.35.WS | Order Code | 431.0800.175.0500.35.NWS |
