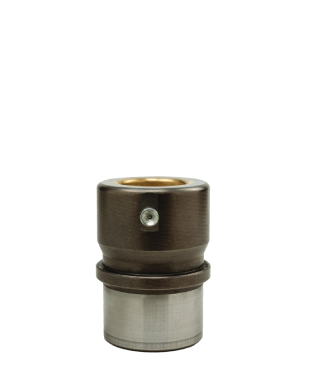

Headed Bronze Coated Steel Bushes

  • Product Image
    • image
  • Technical Image
  • Review PDF

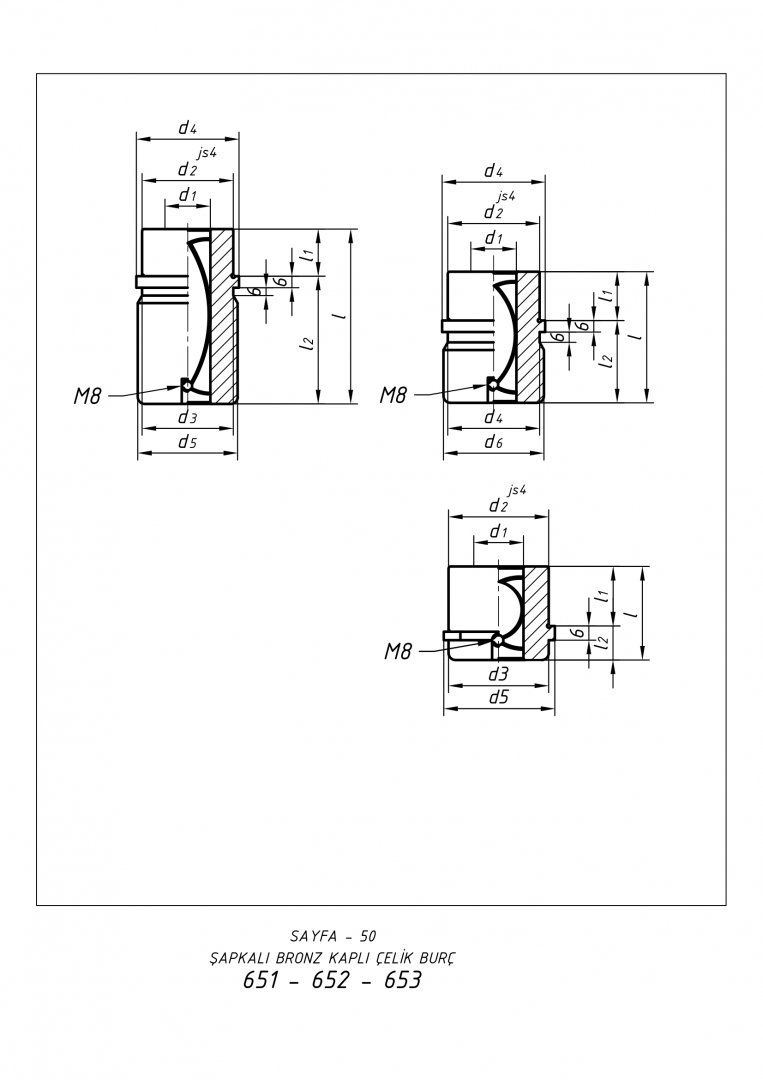

    • 651. ORDER EXAMPLE
    d1 d2=3 d4 d5 I I1 I2
    19-20 32 40 39 59 23 36
    24-25 40 48 46 79 23 56
    30-32 48 56 53 93 30 63
    38-40 58 66 63 108 37 71
    48-50 70 80 77 127 47 80
    60-63 85 95 92 150 60 90
    80 105 118 115 150 60 90
    651.50.127
    652. ORDER EXAMPLE
    d1 d2=3 d4 d5 I I1 I2
    19-20 32 40 39 43 23 20
    24-25 40 48 46 59 23 36
    30-32 48 56 53 75 30 45
    38-40 58 66 63 77 37 45
    48-50 70 80 77 97 47 50
    60-63 85 95 92 116 60 56
    80 105 118 115 120 60 60
     652.50.97
    653. ORDER EXAMPLE
    d1 d2=3 d4 d5 I I1 I2
    19-20 32 40 39 35 23 12
    24-25 40 48 46 35 23 12
    30-32 48 56 53 42 30 12
    38-40 58 66 63 52 37 15
    48-50 70 80 77 65 47 18
    60-63 85 95 92 80 60 20
    80 105 118 115 80 60 20
    653.50.65

    Technical Specifications

    The accuracy and preservation of the centering precision between the punch and matrix in the molds depend on the quality and wear resistance of the guide pillars / bushing groups. Depending on the developments in the manufacturing industry, Kalıpyansan guide elements offer a long working life with new technology production methods that are constantly updated.
