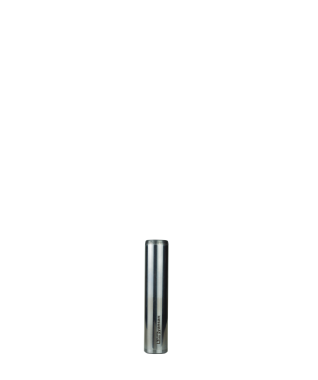

Guide Pillars with Internal Thread
| MATERIAL: Production Steel | ||||
|---|---|---|---|---|
| HARDNESS: 60 ± 2 HRC Hardened by induction. | ||||
| DEPTH: 1,5 mm | ||||
| SURFACE: Very finely ground with precision. |

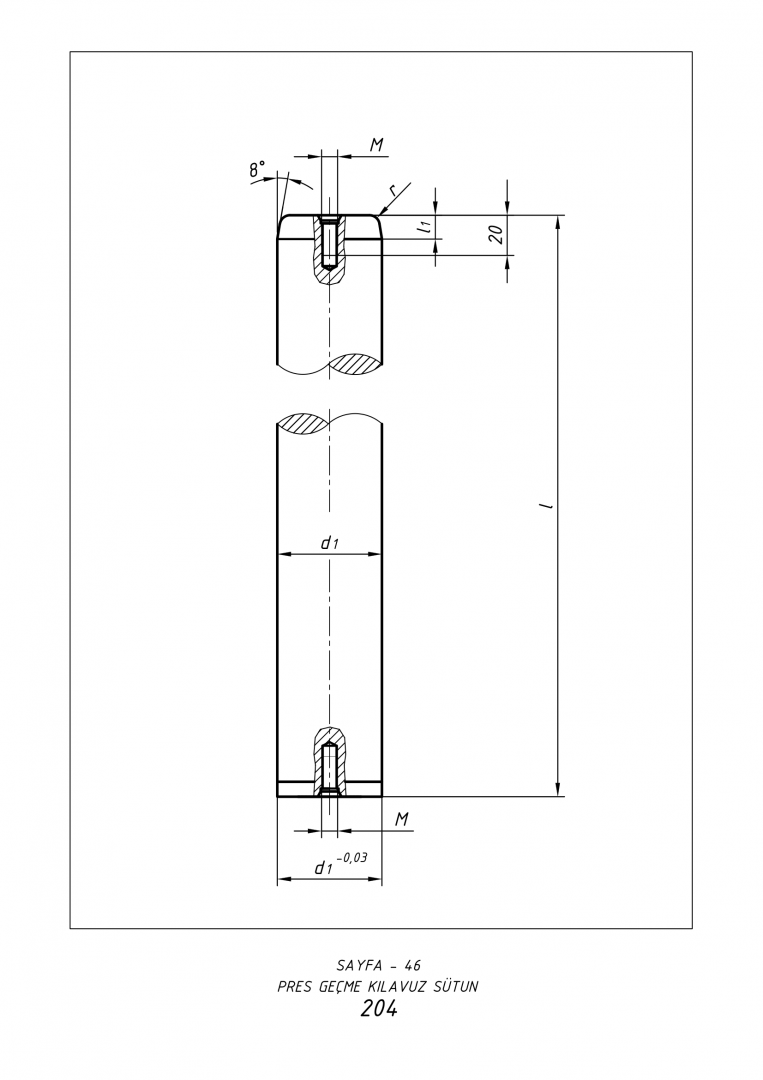

| d1h3 | l | M | Order Code |
|---|---|---|---|
| 12 | 100 | M5x10 | 204.12.100 |
| 15 | 100 | M5x10 | 204.15.100 |
| 15 | 125 | M5x10 | 204.15.125 |
| 16 | 100 | M5x10 | 204.16.100 |
| 16 | 125 | M5x10 | 204.16.125 |
| 19 | 125 | M6x20 | 204.19.125 |
| 19 | 160 | M6x20 | 204.19.160 |
| 19 | 200 | M6x20 | 204.19.200 |
| 20 | 125 | M6x20 | 204.20.125 |
| 20 | 160 | M6x20 | 204.20.160 |
| 20 | 200 | M6x20 | 204.20.200 |
| 24 | 125 | M6x20 | 204.24.125 |
| 24 | 160 | M6x20 | 204.24.160 |
| 24 | 200 | M6x20 | 204.24.200 |
| 24 | 220 | M6x20 | 204.24.220 |
| 25 | 125 | M6x20 | 204.25.125 |
| 25 | 160 | M6x20 | 204.25.160 |
| 25 | 200 | M6x20 | 204.25.200 |
| 25 | 220 | M6x20 | 204.25.220 |
| 30 | 160 | M8x25 | 204.30.160 |
| 30 | 200 | M8x25 | 204.30.200 |
| 30 | 220 | M8x25 | 204.30.220 |
| 30 | 240 | M8x25 | 204.30.240 |
| 30 | 260 | M8x25 | 204.30.260 |
| 30 | 280 | M8x25 | 204.30.280 |
| 32 | 160 | M8x25 | 204.32.160 |
| 32 | 200 | M8x25 | 204.32.200 |
| 32 | 220 | M8x25 | 204.32.220 |
| 32 | 240 | M8x25 | 204.32.240 |
| 32 | 260 | M8x25 | 204.32.260 |
| 32 | 280 | M8x25 | 204.32.280 |
| 38 | 160 | M8x25 | 204.38.160 |
| 38 | 200 | M8x25 | 204.38.200 |
| 38 | 240 | M8x25 | 204.38.240 |
| 38 | 280 | M8x25 | 204.38.280 |
| 38 | 315 | M8x25 | 204.38.315 |
| 40 | 160 | M8x25 | 204.40.160 |
| 40 | 200 | M8x25 | 204.40.200 |
| 40 | 240 | M8x25 | 204.40.240 |
| 40 | 280 | M8x25 | 204.40.280 |
| 40 | 315 | M8x25 | 204.40.315 |
| 48 | 200 | M10x30 | 204.48.200 |
| 48 | 240 | M10x30 | 204.48.240 |
| 48 | 280 | M10x30 | 204.48.280 |
| 48 | 315 | M10x30 | 204.48.315 |
| 48 | 400 | M10x30 | 204.48.400 |
| 50 | 200 | M10x30 | 204.50.200 |
| 50 | 240 | M10x30 | 204.50.240 |
| 50 | 280 | M10x30 | 204.50.280 |
| 50 | 315 | M10x30 | 204.50.315 |
| 50 | 400 | M10x30 | 204.50.400 |
| 60 | 240 | M10x30 | 204.60.240 |
| 60 | 315 | M10x30 | 204.60.315 |
| 60 | 400 | M10x30 | 204.60.400 |
| 60 | 450 | M10x30 | 204.60.450 |
| 63 | 240 | M10x30 | 204.63.240 |
| 63 | 315 | M10x30 | 204.63.315 |
| 63 | 400 | M10x30 | 204.63.400 |
| 63 | 450 | M10x30 | 204.63.450 |
| 80 | 315 | M12x30 | 204.80.315 |
| 80 | 400 | M12x30 | 204.80.400 |
| 80 | 500 | M12x30 | 204.80.500 |
| 80 | 600 | M12x30 | 204.80.600 |
Technical Spesifications
The accuracy and preservation of the centering precision between the punch and matrix in the molds depend on the quality and wear resistance of the guide pillars / bushing groups. Depending on the developments in the manufacturing industry, Kalıpyansan guide elements offer a long working life with new technology production methods that are constantly updated.
